Globe valve [VENS]

EN 13709

Description

DN 15 ÷ DN 350
PN 16 ÷ PN 160

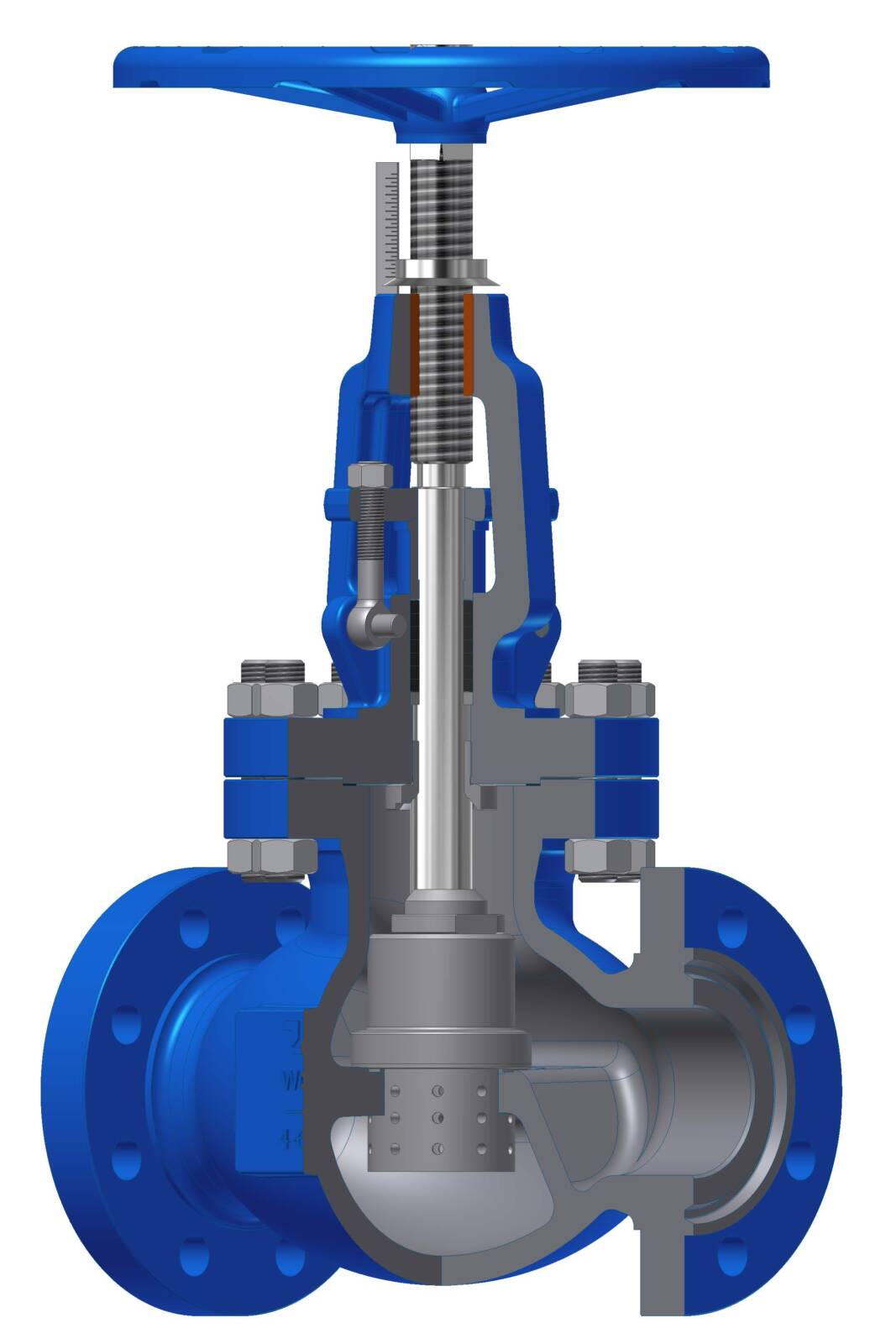

Design

  • Forged or casted body and bonnet
  • Bolted bonnet (BB)
  • Rising stem (RS), outside screw and yoke (OS&Y)
  • Seats are integrated or welded on

Media: Depending on the valve materials: Water, steam, gas, oil and oil derivatives, other non-aggressive media

Pressure and temperature

  • Pressure up to 160 bar
  • Temperature up to 600 °C

Materials

  • Carbon steels, heat-resistant alloys and stainless steels

Advantages

  • Long service life
  • Compliance with emission standards
  • Easy handling and maintenance
  • Replacing the stuffing box packing under operating conditions

Options

  • Electric, hydraulic or pneumatic drive
  • Y-type (VENSY)
  • Angle type (VENSA)
  • Position indicator
  • Extended spindle
  • Inside screw rising stem (IS&RS)
  • Spring-loaded stuffing box (SLSB)
  • TA-Luft
  • NACE
  • AD 2000
  • Locking device
  • Seats and seals made of elastomer and polymer materials
  • Flanges and welding ends according to: GOST, DIN, ASME, etc.
  • Other paint finishes are possible on customer request
  • Valve complete with counter flanges, bolting and gaskets

Testing: Every valve produced has been tested in accordance with EN 12266
